Blind Rivet – Closed End Countersunk Head (CSK) Technical Datasheet
Product Overview
Closed End Countersunk Head Blind Rivets, also known as sealed CSK blind rivets, are one-sided installation permanent fasteners designed to provide a flush surface finish while creating a moisture and dust-resistant joint. The closed-end body design prevents the passage of liquids and gases through the rivet, making them suitable for applications requiring sealing and corrosion resistance. These rivets are widely used in electrical enclosures, control panels, HVAC equipment, automotive components, telecommunications cabinets, and sheet metal fabrication industries.
ITEM CODE: 4014
Standards
| Aluminium / Steel | ISO 15974 |
| Steel / Steel | Conforming to ISO 15976 |
| St Steel / St Steel | Conforming to ISO 16585 |
| Aluminium / Aluminium | Conforming to ISO 15975 |

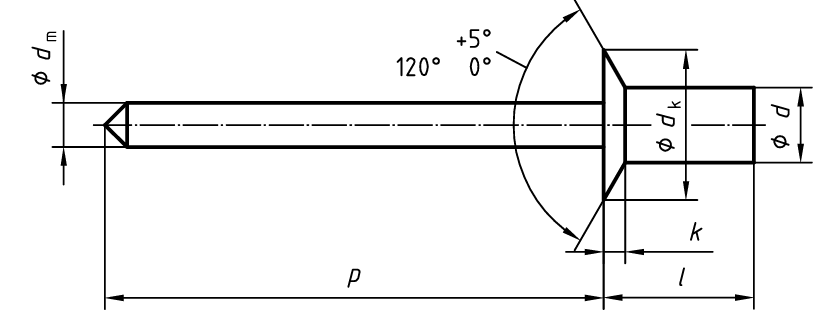

Dimensions
| d (nom) | 3.2 | 4 | 4.8 |
| d (max) | 3.28 | 4.08 | 4.88 |
| d (min) | 3.05 | 3.85 | 4.65 |
| dk (max) | 6.7 | 8.4 | 10.1 |
| dk (min) | 5.8 | 6.9 | 8.3 |
| k | 1.3 | 1.7 | 2 |
| dm (max) | 2 | 2.45 | 2.95 |
| p (min) | 25 | 27 | 27 |
| b | lmax + 4 | lmax + 4 | lmax + 4.5 |
| Hole diameter | 3.3-3.4 | 4.1-4.2 | 4.9-5 |
all dimensions in mm
Mechanical Properties
Aluminium Body / Steel Mandrel – ISO 15974
| d | 3.2 | 4 | 4.8 |
| Tensile Strength (N) | 1450 | 2200 | 3100 |
| Shear Strength (N) | 1100 | 1600 | 2200 |
| Mandel Break Load (N) | 3500 | 5000 | 7000 |
Steel Body / Steel Mandrel – Conforming to ISO 15976
| d | 3.2 | 4 | 4.8 |
| Tensile Strength (N) | 1300 | 1550 | 2800 |
| Shear Strength (N) | 1150 | 1700 | 2400 |
| Mandel Break Load (N) | 4000 | 5700 | 7500 |
Stainless Steel Body / Stainless Steel Mandrel
Conforming to ISO 16585
| d | 3.2 | 4 | 4.8 |
| Tensile Strength (N) | 2200 | 3500 | 4400 |
| Shear Strength (N) | 2000 | 3000 | 4000 |
| Mandel Break Load (N) | 4500 | 6500 | 8500 |
Aluminium Body / Aluminium Mandrel
Conforming to ISO 15975
| d | 3.2 | 4 | 4.8 |
| Tensile Strength (N) | 540 | 760 | 1400 |
| Shear Strength (N) | 460 | 720 | 1000 |
| Mandel Break Load (N) | 1780 | 2670 | 3560 |
Material Characteristics and Recommended Applications
Closed End CSK Head Blind Rivets are available in several material combinations to meet different strength, corrosion resistance, and application requirements.
| Material Combination | Characteristics | Recommended Applications |
|---|---|---|
| Aluminium Body / Steel Mandrel | Lightweight, economical, general-purpose | Sheet metal fabrication, electrical panels, HVAC equipment |
| Steel Body / Steel Mandrel | High strength and durability | Heavy-duty fabrication, machinery, industrial equipment |
| Stainless Steel Body / Stainless Steel Mandrel | Excellent corrosion resistance | Marine, food processing, pharmaceutical, outdoor applications |
| Aluminium Body / Aluminium Mandrel | Lightweight with good corrosion resistance | Aluminium fabrications, signage, lightweight assemblies |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Closed End Blind Rivet |
| Head Style | Countersunk Head (CSK) |
| Installation | One-side access |
| Body Construction | Closed/Sealed End |
| Surface Finish | Plain / Zinc / Passivated |
| Installation Tool | Blind Rivet Tool |
| Joint Type | Permanent Mechanical Fastening |
| Hole Type | Through Hole |
| Sealing Capability | Excellent |
| Vibration Resistance | Good |
| Corrosion Resistance | Material Dependent |
| Head Angle | Typically 120° |
Applications
Closed End CSK Head Blind Rivets are commonly used in:
- Electrical control panels
- Sheet metal enclosures
- Telecommunication cabinets
- HVAC systems
- Automotive components
- Railway equipment
- Medical equipment
- Solar mounting systems
- Outdoor signage
- Industrial machinery
- Electronic housings
- Appliance manufacturing
Advantages
- Provides a flush surface finish after installation.
- Closed-end design offers excellent sealing performance.
- Prevents ingress of water, dust, oil, and contaminants.
- Suitable for blind-side installation.
- High vibration resistance.
- Permanent and tamper-resistant fastening.
- Available in multiple material combinations.
- Suitable for thin sheet assemblies.
- Excellent aesthetic appearance.
- Reduced risk of galvanic corrosion when properly matched.
