Blind Rivet – Multigrip – Open End – Dome Head Technical Datasheet
Product Overview
Blind Rivet – Multigrip – Open End – Dome Head rivets are designed to accommodate a wider grip range than conventional blind rivets, reducing inventory requirements and simplifying assembly operations. These rivets provide excellent hole-filling capability, high clamp force retention, and reliable fastening performance across varying material thicknesses. Their ability to accommodate oversized, irregular, or variable thickness holes makes them suitable for high-volume industrial assembly applications.
Typical applications include sheet metal fabrication, electrical enclosures, HVAC equipment, automotive components, transportation equipment, telecommunications cabinets, appliances, and general manufacturing.
ITEM CODE: 4017
Standards – Conforming to
| Aluminium / Steel | ISO 15977 |
| Steel / Steel | ISO 15979 |
| St Steel / St Steel | ISO 15983 |

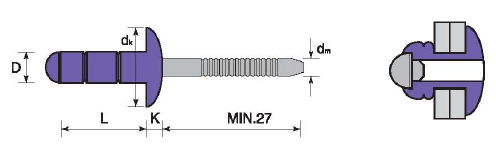

Dimensions
| d (nom) | 3.2 | 4 | 4.8 | 6.4 |
| d (max) | 3.28 | 4.08 | 4.88 | 6.48 |
| d (min) | 3.05 | 3.85 | 4.65 | 6.25 |
| dk (max) | 6.7 | 8.4 | 10.1 | 13.4 |
| dk (min) | 5.8 | 6.9 | 8.3 | 11.6 |
| k | 1.3 | 1.7 | 2 | 2.7 |
| dm (max) | 2 | 2.45 | 2.95 | 3.9 |
| p (min) | 25 | 27 | 27 | 27 |
| b | lmax + 4 | lmax + 4 | lmax + 4.5 | lmax + 5.5 |
| Hole diameter | 3.3-3.4 | 4.1-4.2 | 4.9-5 | 6.5-6.6 |
all dimensions in mm
Mechanical Properties
Aluminium Body / Steel Mandrel
| d | 3.2 | 4 | 4.8 | 6.4 |
| Tensile Strength | 850 N | 1500 N | 2000 N | 4000 N |
| Shear Strength | 650 N | 950 N | 1320 N | 3800 N |
Steel Body / Steel Mandrel
| d | 3.2 | 4 | 4.8 |
| Tensile Strength | 1200 N | 2000 N | 2900 N |
| Shear Strength | 1000 N | 1500 N | 2400 N |
Stainless Steel Body / Stainless Steel Mandrel
| d | 3.2 | 4 | 4.8 |
| Tensile Strength | 2000 N | 3400 N | 4500 N |
| Shear Strength | 1700 N | 2700 N | 4000 N |
Material Characteristics and Recommended Applications
Multigrip Dome Head Blind Rivets are available in several material combinations to meet different strength, corrosion resistance, and application requirements.
| Material Combination | Characteristics | Recommended Applications |
|---|---|---|
| Aluminium Body / Steel Mandrel | Lightweight, economical, general-purpose | Sheet metal fabrication, electrical panels, HVAC equipment |
| Steel Body / Steel Mandrel | High strength and durability | Heavy-duty fabrication, machinery, industrial equipment |
| Stainless Steel Body / Stainless Steel Mandrel | Excellent corrosion resistance | Marine, food processing, pharmaceutical, outdoor applications |
Technical Specifications
| Property | Specification |
|---|---|
| Product Type | Blind Rivet |
| Rivet Design | Multigrip |
| End Type | Open End |
| Head Style | Dome Head |
| Installation Method | Blind Side Installation |
| Hole Filling Capability | Excellent |
| Grip Range | Extended/Wide Grip Range |
| Hole Tolerance Compensation | Excellent |
| Stem Retention | Positive Stem Retention |
| Installation Tool | Manual, Pneumatic, Battery Riveters |
| Standard Diameter Range | 3.2 mm – 6.4 mm |
| Typical Applications | Variable Thickness Materials |
| Assembly Access | One Side Access Required |
Applications
Multigrip Dome Head Blind Rivets are commonly used in:
- Sheet metal fabrication
- Electrical control panels
- Switchgear enclosures
- Telecommunications cabinets
- HVAC equipment
- Automotive components
- Railway equipment
- Solar equipment
- Appliance manufacturing
- Industrial machinery
- Transportation equipment
- Agricultural equipment
- General engineering fabrication
- Metal furniture manufacturing
Advantages
- Wide grip range reduces inventory requirements.
- Accommodates variable material thicknesses.
- Excellent hole-filling capability.
- Suitable for oversized and irregular holes.
- High clamp force retention.
- One fastener replaces multiple standard grip lengths.
- Reduced assembly errors.
- Fast and economical installation.
- Excellent vibration resistance.
- Suitable for automated assembly processes.
- Available in multiple material combinations.
- Positive stem retention designs available.
Related Products
- Open End Blind Rivets
- Closed End Blind Rivets
- Multi-Grip Blind Rivets
- Monobolt Rivets
- Interlock Rivets
- High Strength Rivets
Frequently Asked Questions
What is a multigrip blind rivet?
A multigrip blind rivet is a blind rivet designed to accommodate a much wider grip range than conventional blind rivets, allowing one rivet size to replace several standard grip ranges.
What is the advantage of multigrip rivets over standard blind rivets?
Multigrip rivets reduce inventory, compensate for variable material thicknesses, provide superior hole fill, and simplify assembly operations.
Can multigrip rivets be installed using standard rivet tools?
Yes. Most multigrip blind rivets can be installed using standard manual, pneumatic, or battery-operated blind rivet tools.
Are multigrip rivets suitable for oversized holes?
Yes. One of their primary advantages is excellent performance in oversized, slotted, and irregular holes.
What material combinations are available?
Common combinations include Aluminium/Steel, Steel/Steel, Stainless Steel/Stainless Steel, and Aluminium/Stainless Steel.
Are multigrip rivets structural rivets?
No. Multigrip rivets are designed primarily for extended grip capability and hole compensation. For high-strength structural applications, structural blind rivets such as Monobolts or Interlock rivets are recommended.
Are multigrip rivets watertight?
No. Open end blind rivets are not designed to provide a watertight seal. For sealing applications, closed end blind rivets are recommended.
Technical Disclaimer
The technical information, specifications, dimensions, mechanical properties, drawings, and performance data provided on this website are intended for general reference and engineering guidance only. Values shown are representative of products manufactured under normal production conditions and may vary depending on material grade, manufacturing tolerances, installation method, application, and operating environment.
While Horizon Inc. makes every reasonable effort to ensure the accuracy of the information provided, we make no warranties, express or implied, regarding its completeness, accuracy, or suitability for any particular purpose. Customers are responsible for verifying that the selected product is appropriate for their specific application and operating conditions. Where safety, structural integrity, or regulatory compliance is critical, independent engineering evaluation and product testing should be performed.
Horizon Inc. reserves the right to modify product specifications, dimensions, materials, and technical data without prior notice.
To the fullest extent permitted by applicable law, Horizon Inc. shall not be liable for any direct, indirect, incidental, consequential, or special damages arising from the use of, or reliance upon, the information contained on this website.
