Hi-Bulb Structural Blind Rivet Technical Datasheet
Product Overview

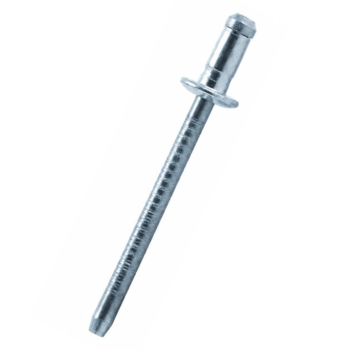

The Hi-Bulb Structural Blind Rivet, commonly referred to in the industry as Unigrip blind rivet, is a high-strength blind fastening solution designed for applications requiring excellent hole-filling capability, superior vibration resistance, and installation in materials with varying thicknesses. The unique expanding bulb formation on the blind side provides a large bearing area, making these rivets particularly suitable for thin sheet materials, oversized holes, and applications requiring enhanced pull-out resistance.
Horizon Inc.’s Hi-Bulb Structural Blind Rivets are available in both Steel-Steel and Stainless Steel-Stainless Steel constructions, offering reliable performance across industrial, transportation, electrical enclosure, HVAC, fabrication, and construction applications.
ITEM CODE: 4024
Standards – Dimensions Conform to
| Steel / Steel | ISO 15979 |
| St Steel / St Steel | ISO 15983 |

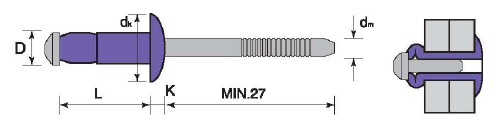

Dimensions
| d (nom) | 3.2 | 4 | 4.8 | 6.4 |
| d (max) | 3.28 | 4.08 | 4.88 | 6.48 |
| d (min) | 3.05 | 3.85 | 4.65 | 6.25 |
| dk (max) | 6.7 | 8.4 | 10.1 | 13.4 |
| dk (min) | 5.8 | 6.9 | 8.3 | 11.6 |
| k | 1.3 | 1.7 | 2 | 2.7 |
| dm (max) | 2 | 2.45 | 2.95 | 3.9 |
| p (min) | 25 | 27 | 27 | 27 |
| b | lmax + 4 | lmax + 4 | lmax + 4.5 | lmax + 5.5 |
| Hole diameter | 3.3-3.4 | 4.1-4.2 | 4.9-5 | 6.5-6.6 |
all dimensions in mm
Mechanical Properties
Steel Body / Steel Mandrel
| d | 3.2 | 4 | 4.8 | 6.4 |
| Tensile Strength – (Min) | 1200 N | 2000 N | 2900 N | 5400 N |
| Shear Strength – (Min) | 1200 N | 2400 N | 4200 N | 11000 N |
Stainless Steel Body / Stainless Steel Mandrel
| d | 3.2 | 4 | 4.8 | 6.4 |
| Tensile Strength – (Min) | 2000 N | 3500 N | 4500 N | 8300 N |
| Shear Strength – (Min) | 1600 N | 4000 N | 5500 N | 13700 N |
The mechanical values shown are nominal minimum values intended for design guidance only and do not constitute a guarantee of performance in a specific application. Users should validate suitability through application-specific testing.
Material Characteristics and Recommended Applications
| Material Combination | Characteristics | Typical Applications |
|---|---|---|
| Steel Body / Steel Mandrel | High tensile strength, economical | Sheet metal fabrication, electrical panels, HVAC, enclosures |
| Stainless Steel Body / Stainless Steel Mandrel | Excellent corrosion resistance, high strength | Outdoor equipment, transportation, marine, food processing, infrastructure |
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Structural Blind Rivet |
| Trade Name | Hi-Bulb Rivet |
| Installation Method | Blind Side Installation |
| Head Style | Dome Head |
| Body Design | High Expansion Multi-Grip |
| Body Material | Carbon Steel / A2 Stainless Steel |
| Mandrel Material | Carbon Steel / A2 Stainless Steel |
| Grip Capability | Wide Grip Range |
| Hole Filling | Excellent |
| Vibration Resistance | Excellent |
| Blind Side Formation | Large Expanding Bulb |
| Installation Tool | Standard Riveting Tool |
| Corrosion Resistance | Moderate (Steel), Excellent (A2 Stainless Steel) |
| Application Type | Structural / Semi-Structural Fastening |
Applications
Hi-Bulb Structural Blind Rivets are commonly used in:
- Electrical control panels and enclosures
- Sheet metal fabrication
- HVAC ducting systems
- Transportation equipment
- Railway interiors
- Bus and commercial vehicle bodies
- Telecommunication cabinets
- Solar mounting systems
- Signage systems
- Industrial equipment
- Agricultural machinery
- Marine equipment
- Construction and infrastructure
- General manufacturing assemblies
Advantages
- Wide grip range reduces inventory requirements.
- Excellent hole-filling capability compensates for oversized holes.
- Large blind-side bulb distributes load over a wider area.
- High resistance to vibration and loosening.
- Suitable for joining thin and brittle materials.
- Strong pull-out and shear performance.
- Single-side installation access required.
- Reduced risk of material deformation.
- Available in corrosion-resistant stainless steel construction.
- Suitable for structural and semi-structural applications.
Related Products
- Open End Blind Rivets
- Closed End Blind Rivets
- Multi-Grip Blind Rivets
- Monobolt Rivets
- Interlock Rivets
- High Strength Rivets
Frequently Asked Questions
What is a Hi-Bulb rivet?
A Hi-Bulb rivet is a structural blind rivet that forms a large expanding bulb on the blind side, providing superior hole-filling capability and enhanced pull-out resistance.
What are the advantages over standard blind rivets?
Hi-Bulb rivets offer:
* Wider grip range
* Better hole-filling capability
* Higher pull-out resistance
* Improved vibration resistance
* Better performance in thin materials
Can Hi-Bulb rivets be used in oversized holes?
Yes. Their expanding bulb design provides excellent performance in oversized or irregular holes.
Are Hi-Bulb rivets suitable for structural applications?
Yes. They are widely used in structural and semi-structural fastening applications where improved strength and reliability are required.
What tools are required for installing Hi-Bulb Rivet?
Hi-Bulb Rivets can be installed using pneumatic, battery-powered, or hydraulic blind rivet tools.
Are Hi-Bulb rivets watertight?
No. Hi-Bulb rivets are not designed as sealed or watertight fasteners. For applications requiring a watertight joint, closed-end blind rivets or additional sealing methods should be used.
Is Hi-Bulb the same as a Unigrip rivet?
Yes. Hi-Bulb is Horizon Inc.’s designation for the style of blind rivet commonly marketed by many manufacturers as a “Unigrip” rivet. The product features a large blind-side bulb formation and a wide grip range.
